產品介紹
產品特性
1、熱插拔SFP封裝
2、雙纖LC接口
3、在多模光纖中傳輸距離達到300米
4、內置數字診斷功能
5、符合SFP MSA標準
6、+3.3V單供電電壓
7、符合RoHS 6標準
8、工作溫度范圍：
商業級：0 to +70°C
工業級：-40 to +85°C
9、兼容性強，適用于國內外各品牌交換機
產品應用
1、萬兆以太網
2、光纖網絡OC-192 同步數字體系STM-64
3、萬兆交換機互聯
4、萬兆路由/服務器光鏈接
5、其他萬兆光傳輸系統
光學參數
Optical transmitter Characteristics | ||||||
Parameter | Symbol | Min | Typical | Max | Unit | Notes |
Launched Power (avg.) | POUT | -7.3 | -1 | dBm | ||
Optical Power OMA | POMA | -1.5 | dBm | 1 | ||
Operating Wavelength Range | λC | 840 | 850 | 860 | nm | |
Spectral Width (RMS) | ?λ | 0.45 | nm | |||
Extinction Ratio | ER | 3 | dB | 2 | ||
Transmitter and Dispersion Penalty | TDP | 3.2 | dB | |||
Optical Output Power after TX Disable | PDIS | -30 | dBm | |||
Relative Intensity Noise | RIN | -128 | dB/Hz | |||
Optical Return Loss Tolerance | ORL | 12 | dB | |||
Tx Jitter | Txj | Per IEEE 802.3ae requirements | ||||
Optical Receiver Characteristics | ||||||
Parameter | Symbol | Min | Typical | Max | Unit | Notes |
Wavelength Range | λC | 840 | 850 | 860 | nm | |
Receiver Sensitivity (OMA) | RSENS1 |
-11.1 | dBm | 3 | ||
Stressed Receiver Sensitivity (OMA) | RSENS2 |
-7.5 | dBm | 3 | ||
Optical Power Input Overload | Pin-max | +0.5 | dBm | |||
LOS De-Assert | LOSD | -13 | dBm | 3 | ||
LOS Assert | LOSA | -30 | dBm | 3 | ||
LOS Hysteresis | 0.5 | dB | 4 | |||
Receiver Reflectance | Rr | -12 | dB | |||
Notes:
1.Per Tradeoff Table 52.8, IEEE 802.3ae 2005
2.For the measurements, the device was driven with 231-1 PRBS pattern.
3.Measured with a PRBS 231-1 test pattern, @10.3125Gbps,, BER<10-12
4.The LOS Hysteresis minimizes ‘chatter’ on the output line. In principle, Hysteresis alone does not guarantee chatter-free operation.
引腳定義
The SFP+ modules are hot-pluggable. Hot pluggable refers to plugging in or unplugging a module while the host board is powered. The SFP+ host connector is a 0.8 mm pitch 20 position right angle improved connector specified by SFF-8431, or stacked connector with equivalent electrical performance. SFP+ module contacts mates with the host in the order of ground, power, followed by signal as illustrated by Figure 1 and the contact sequence order listed in Table 1.

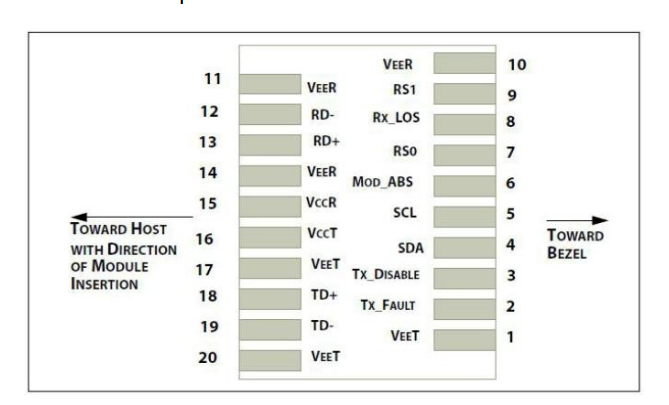

Figure 1 SFP+ Pad Assignment Top View
